OVERVIEW
Self-dumping steel hopper features a low-profile design for convenient loading and quick and simple dumping with a fork truck.

FEATURES + BENEFITS
4000-lb. capacity
1/2 cu. yd. volume
25in.W x 51 1/4in.D x 28in.H overall
11 3/4in. fork pocket centers

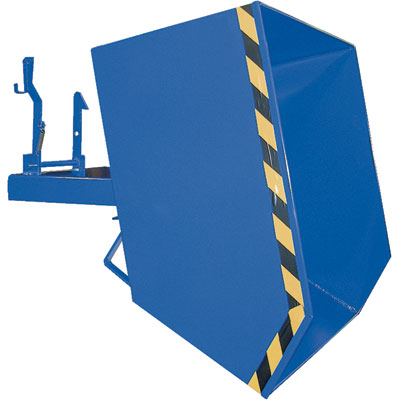

Full 90° dump angle with a cushioned rubber bumper stop
Low-profile design is essential for convenient loading

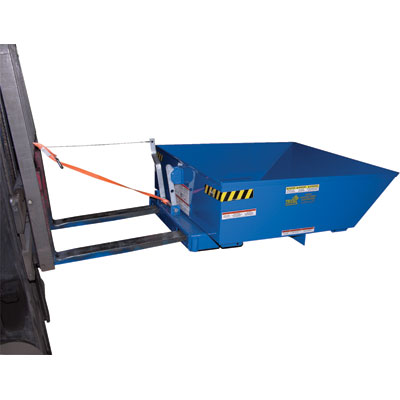

Dumping with a fork truck is quick and simple; a 4-ft. cable is pulled from the seat of the fork truck to dump the hopper
Unit returns to an upright and locked position when lowered to the ground
Safety restraint is provided to secure the hopper to the fork truck
22in.L usable fork pockets measure 7in.W x 2in.H
Powder-coat blue finish
KEY SPECS
Manufacturer Warranty 3 month parts/no labor
Ship Weight 256.0 lbs
All versions of Self Dumping Steel Hopper, Low Profile 90 deg


Item# Height/in. Width/in. Depth/in. Cap/lb. ForkCtrs./in. Cap.
325H 18-1/4 25 46 6000 11-1/2 1/4
350M 28 25 51-1/4 4000 11-3/4 1/2
31M 28 49 51-1/4 4000 21-3/4 1
31H 28 49 51-1/4 6000 21-3/4 1
315L 41 49 51-1/4 2000 21-3/4 1-1/2
315M 41 49 51-1/4 4000 21-3/4 1-1/2
