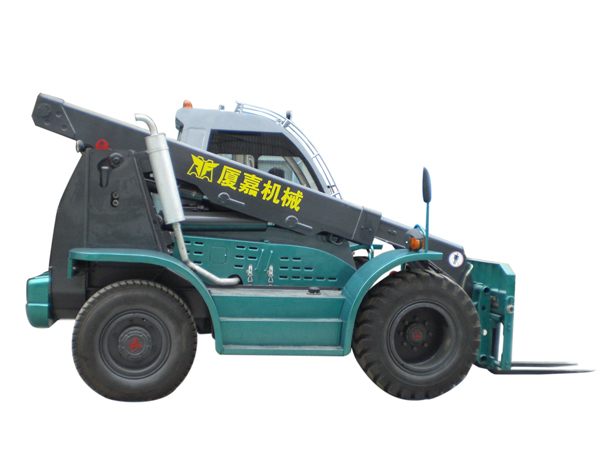

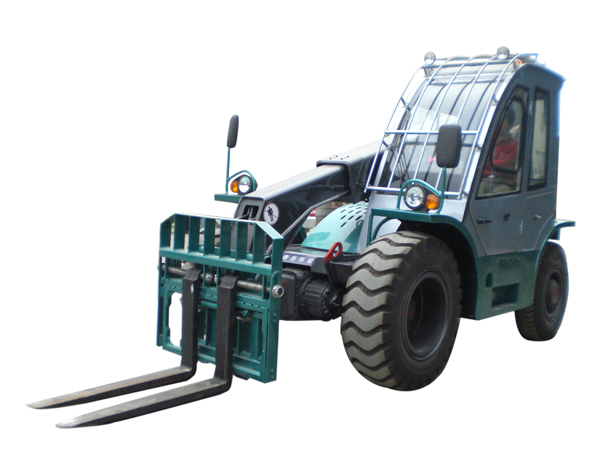

SCZ35-4型伸缩臂叉装机

( Telescopic Forklift Loader)



[ 产品简介 Product Introduction ]



    SCZ35-4型伸缩臂叉装机,底盘采用四轮驱动,刚性悬挂;液力机械传动,液压动力转向和液压制动,后轮转向。作业装置为两节四边形伸缩式工作臂,标准车型配有货叉侧移装置。该车可用于集装箱内托盘集装物资的掏箱、装箱作业和对各类集装物资进行装卸、码垛和短途搬运作业。


    该车适合在多种工作环境下作业,是工矿、企业、建筑、建材、港口、市政工程等行业装卸、起重、运输的理想设备。该车还备有铲斗、吊钩、吊臂等各种不同属具供用户选择、安装使用。其装卸高度及越野性能是普通叉车所无法比拟的。



SCZ35-4 Type Telescopic Forklift Loader, which uses the four-wheel drive, the rigid suspension; The fluid mechanical drive, the hydraulic power changes with the hydraulic brake, the rear wheel changes. The operation installment is two quadrangle telescopic handle, has fork which fix could be side to move. Could use to pull in & out the box on the container, also for loading and unloading, Cargo stowing and short-haul handing.



This type could be operated under many kinds of working conditions, is excellent equipment for craning, transporting, loading and unloading on Industry and Mining, Enterprise, Construction, Materials, Harbor, Municipal Engineering. Also has the scoop, the hook ,the suspend arm and so on each kind is differently for the customer’s choice to install. Its loading and unloading and the cross-country performance is highly the universal forklift is unable to compare.



[ 主要技术参数 Specifications ]



额定起重量

Rated load

3500kg

最大外伸距时举升重量

Lifting load (Max.extend length)

1250kg

基本臂最大作业高度

Max.lifting height of basic arm

4350mm

全伸臂最大作业高度

Max.lifting height of full extend arm

6020mm

最大行驶速度

Max.traveling speed

30km/h

最小离地间隙

Min.ground clearance

350mm

最小转弯直径(外轮中心)

Min.turning Diameter (center of outer wheel)

15500mm

爬坡度

Grade ability

30%

自重

Deadweight

8000kg

整机外形尺寸(长×宽×高)

Overall dimension (L×W×H)

6060mm×2270mm×2650mm

发动机(东风康明斯)

Engine (Dongfeng Cummins)

型号

Type

4BT3.9-C80

额定功率

Rated power

60kw

标定转速

Rated speed

2000r/min

轮胎

Tyre

前轮

Front wheel

16/70-24

后轮

Rear wheel

10.00-20-14



注:由于技术改进,该数据可能与产品不符,如有误则以产品为准。

Note:The content and performance will be revised and the products will be improve without notice.
