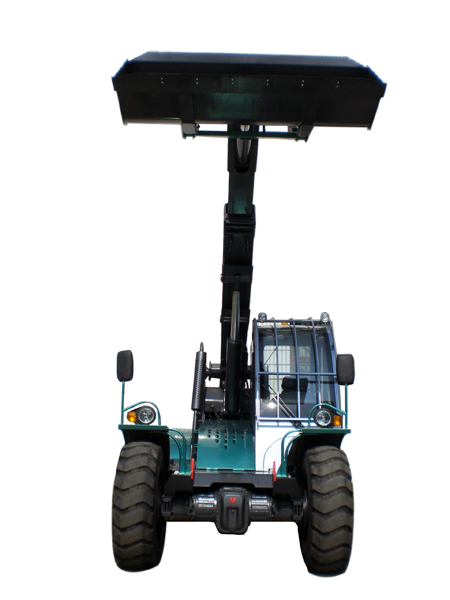

SCZ25-4型伸缩臂装载机

( Telescopic Loader)



[ 产品简介 Product Introduction ]



SCZ25-4伸缩臂装载机是一种新型装卸机械,它备有货叉和侧移工作装置(或货叉和铲斗),适合于从事成箱货物的起重和堆垛,也可在市政工程施工中从事道路照明设备的安装检修等高空作业和各种底下管道(例如自来水管、煤气管等)的安装铺设等作业,并能广泛地适用于工厂、车站、码头、货场、邮电、林场、建材、仓库、物流等行业,是一种适应性广和效率高的装卸机械。



As a new loading/unloading machine, SCZ25-4 model telescopic loader is equipped with fork and side-shifting device (or with fork and bucket), it is suitable for hoisting and piling of goods packed in boxes, and also for such aloft work as installation and maintenance of street lighting fitting and laying-out of underground pipelines (pipeline of tap water, gas and so on) in the construction of municipal works, and it may be used widely in such sites as factories, stations, logistics terminals, goods yards, post office, forest farm, enterprises of building materials, and warehouses, and therefore it is a loading/unloading machine with wide adaptability and high efficiency.



[ 主要技术参数 Specifications ]



额定起重量

Rated load

2500kg

最大外伸距时举升重量

Lifting load (Max.extend length)

1000kg

基本臂最大作业高度

Max.lifting height of basic arm

4300mm

全伸臂最大作业高度

Max.lifting height of full extend arm

6000mm

最大行驶速度

Max.traveling speed

28km/h

最小离地间隙

Min.ground clearance

310mm

最小转弯直径(外轮中心)

Min.turning Diameter (center of outer wheel)

12500mm

爬坡度

Grade ability

30%

自重

Deadweight

7100kg

整机外形尺寸(长×宽×高)

Overall dimension (L×W×H)

5560mm×2270mm×2560mm

发动机(东风康明斯)

Engine (Dongfeng Cummins)

型号

Type

4BT3.9-C80

额定功率

Rated power

60kw

标定转速

Rated speed

2000r/min

轮胎

Tyre

前轮

Front wheel

16/70-20

后轮

Rear wheel

8.25-20-14



注:由于技术改进,该数据可能与产品不符,如有误则以产品为准。

Note:The content and performance will be revised and the products will be improve without notice.
