三良汽车尾板简介：

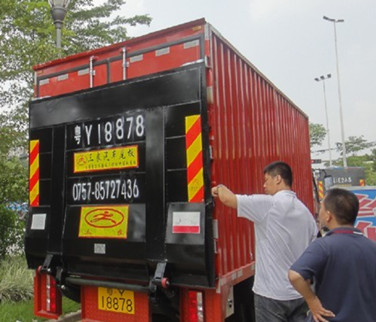

佛山市三良机械设备有限公司生产的三良牌汽车尾板是安装于货车和各种密闭车辆尾部的一种以车载蓄电池为动力的液压起重装卸设备。可大幅度提高运输及装卸效率，是现代化物流运输的必备设备之一。三良尾板现已广泛应用于纸品、印刷、五金、化工、模具、工业气体、电子、电器、金融、邮政、物流、运输等众多领域，深受广大用户好评。三良尾板也叫汽车升降尾板、装卸尾板、起重尾板、液压尾板。
San Liang Automobile Tail Description:
Foshan san liang Machinery Equipment Co., Ltd. San liang brand vehicles produced by the end plate is installed in trucks and a variety of enclosed vehicles to the rear of a car battery-powered hydraulic lifting handling equipment. Can greatly improve the efficiency of transport and handling, is a modern logistics and transport, one of the essential equipment. San liang tail plate is now widely used in paper products, printing, hardware, chemicals, mold, industrial gas, electronics, electrical appliances, financial services, postal services, logistics, transportation and many other areas, well received by consumers. San liang, also known as automobile tail plate lifting tail board, tail plate loading and unloading, lifting tail plate, hydraulic tailgate.
三良汽车尾板特点：
1.液压缸均采用镀镍活塞杆及防尘圈,密封系统采用多层组合密封，性能稳定不漏油。
2.液压站内置流量控制阀，可调校升降及翻转速度。
3.内置三道保护开关，当汽车电路短路、电瓶电压偏低或电流偏大、尾板超载等情况出现时可有效避免造成电路或马达的烧毁。
4.另配置过桥分隔尾板与车厢尾门，避免车厢尾门长期碰撞导致损毁。
5．配置有安全保护系统，当尾板升与车厢平齐时，系统自动切断电源。
6．尾板的核心---动力系统采用原装进口动力配置单元。
7.动力系统、密封件、液压管路均原装进口，安全可靠，故障率低。
8.电控箱采用四位按钮独特的人性化设计单键操作，方便快捷。
9.采用车载电源供电，绿色环保。
10.采用五缸液压驱动系统，全自动操作，各油缸通过电控操作便可实现顺序动作，可随时根据装卸货物需要调节尾板的倾斜角度，并具有相对位置的自动智能记忆功能，适合安装于各类型货车。
San Liang vehicle liftgate features:
1. Hydraulic cylinders are used nickel-plated piston rod and the dust ring, sealing system uses multi-layer sealing, stable performance, no leakage.
2. Hydraulic station built-in flow control valve, adjustable lifting and turning speed.
3. Built-in three-protect switch, when the vehicle a short circuit, low battery voltage or current is too large, tail plate overload occurs can effectively avoid the circuit or the motor burning.
4. The other configuration separated by the end of the bridge plate and car tail gate, tail gate to prevent car collisions result in long-term
5. Equipped with safety protection system, when the tail plate l flush with the car, the system automatically shut off power.
6. Transom core --- South Korea imported power system using power unit.
7. Power system, seals, hydraulic pipes are imported, safe and reliable, failure rate is low.
8. Electric control box with four buttons a unique user-friendly design of one-touch operation, convenient and quick.
9. Use of vehicle power supply, green environmental protection.
10. With five-cylinder hydraulic drive system, fully automatic, electronically controlled operation of the fuel tank can be achieved through the sequence of action, may at any time according to loading and unloading of goods necessary to readjust the tilt angle of the end plate, and has the relative position of the automatic intelligent memory function, suitable for installation in all types of vehicles.
三良汽车尾板分类（ San liang Automobile Tail Category）：
三良汽车尾板主要可分为:
1. 悬臂式尾板:结构较复杂，载重量大，板面角度可调节；适用于各种箱式货车、敞车、邮政、银行等特种运输车辆；其适用范围最为广泛。
2.垂直式尾板:结构简单、安装简便、载重量较小。适用于各种车型。主要用于机场配餐车和气瓶运输车等。
3.摇臂式尾板:结构简单，自重较轻，载重量较小，安装简便。适用于轻型货车，主要用于气瓶、桶、罐类运输。
San liang vehicle liftgate can be divided into:
1. Cantilever tail plate: structure more complex load large plate surface angle can be adjusted; applicable to all kinds of box-type trucks, gondola car, postal services, banks and other special transportation vehicles; its application to the widest range.
2. Vertical tail plate: simple structure, easy installation, a smaller load. Applicable to a variety of models. Primarily for use in airport catering trucks and other vehicles and gas cylinders.
3. Rocker-style tail plate: simple structure, light weight, load small, easy to install. For light trucks, mainly used for gas cylinders, drums, cans of transport.
三良汽车尾板安装注意事项:
1、汽车车厢尾部不需做脚踏板载重量大于3吨的货车尾灯应平置。
2、汽车尾灯上端应低于车厢底板至少250mm。
3、3吨以下的货车尾灯应竖置，上端应该低于车厢底板至少250mm。
4、汽车车厢底板与其相连的后端槽钢应该在同一水平面内，不应留下台阶。
5、汽车车厢下边的门扣应做成弯钩，扣在槽钢相应小孔上，槽钢上不应做凸出的门扣。
6、汽车车厢后档板中间部分约1000mm，保持全空。
San liang vehicle liftgate Installation Notes:
1, cars do not need to do the rear pedal car load of greater than 3 tons of truck taillights should be set flat.
2, car tail lights should be below the upper compartment floor at least 250mm.
3,3 tons truck taillights should be set vertical, the upper floor should be less than the carriage of at least 250mm.
4, vehicle compartment floor with its back-channel should be connected to the same horizontal plane, the steps should not be left behind.
5, auto car below the door of deduction should be made of hook, buckle the corresponding holes in the channel, the channel should not be doing the door protruding buckle.
6, the middle part of the vehicle compartment tailgate is about 1000mm, to keep the whole space.
三良汽车尾板技术参数
|
|
|
尾板型号 |
XL-TG-700 |
XL-TG-1000 |
XL-TG-1000A |
XL-TG-1500A |
XL-TG-2000A |
XL-TG-2500A |
|
额定载重 |
700KG |
1000KG |
1000KG |
1500KG |
2000KG |
2500KG |
|
自身重量 |
250KG |
300KG |
350KG |
400KG |
500KG |
550KG |
|
面板规格(高x宽) |
1800x1200
1600x800 |
1800x1200
1600x800 |
1800x1600 |
1700x1600 |
1800x1600 |
2000x1600 |
|
|
1700x1600 |
2000x1800 |
2100x1800 |
2200x1800 |
|
|
1600x1500 |
2300x1800 |
2400x1800 |
2500x1850 |
|
电机动力 |
DC12V-24V/100AH-16AH |
|
电机功率 |
1.6kw |
1.6kw |
2kw |
2kw |
3kw |
|
开关门方式 |
半自动机械式 |
全自动电控式 |
|
支架臂长 |
700 |
700/750 |
750/900 |
900/1000 |
|
支架内宽 |
500 |
900 |
900/1050 |
1050 |
|
适用厢底高度 |
700-950 |
800/1000 |
1000/1500 |
|
平均升降速度 |
80mm/s |
|
选用油料 |
普通液压油(一般选用32#、46#或68#) |
|
落地工作倾角 |
50-80(与面板高度成反比) |
|
Tail plate Model XL-TG-700 XL-TG-1000 XL-TG-1000A XL-TG-1500A XL-TG-2000A XL-TG-2500A
Rated Load 700KG 1000KG 1000KG 1500KG 2000KG 2500KG
Own weight 250KG 300KG 350KG 400KG 500KG 550KG
Panel Size (H x W) 1800x1200
1600x800 1800x1200
1600x800 1800x1600 1700x1600 1800x1600 2000x1600
1700x1600 2000x1800 2100x1800 2200x1800
1600x1500 2300x1800 2400x1800 2500x1850
Electric Power DC12V-24V/100AH-16AH
Motor Power 1.6kw 1.6kw 2kw 2kw 3kw
Semi-automatic mechanical door switch mode automatic electric control type
Bracket arm length 700 700/750 750/900 900/1000
Stent W 500 900 900/1050 1050
Applicable to the car at the end of a high degree of 700-950 800/1000 1000/1500
The average lifting speed of 80mm / s
Ordinary use of oil hydraulic oil (generally choose 32 #, 46 # or 68 #)
Floor work dip 50-80 (with the panel height is inversely proportional to)
