具有革命性意义的PalletPal 360弹簧升降台自从1988年首次在美国推出以来，已经彻底改变了手动托盘的处理方法。该设备不断保持负载在一个理想的高度，因此可以为操作员提供合适的工作高度。至今为止不断升级的型号，如气囊升降台和托盘地平台已被开发，以进一步丰富产品系列。

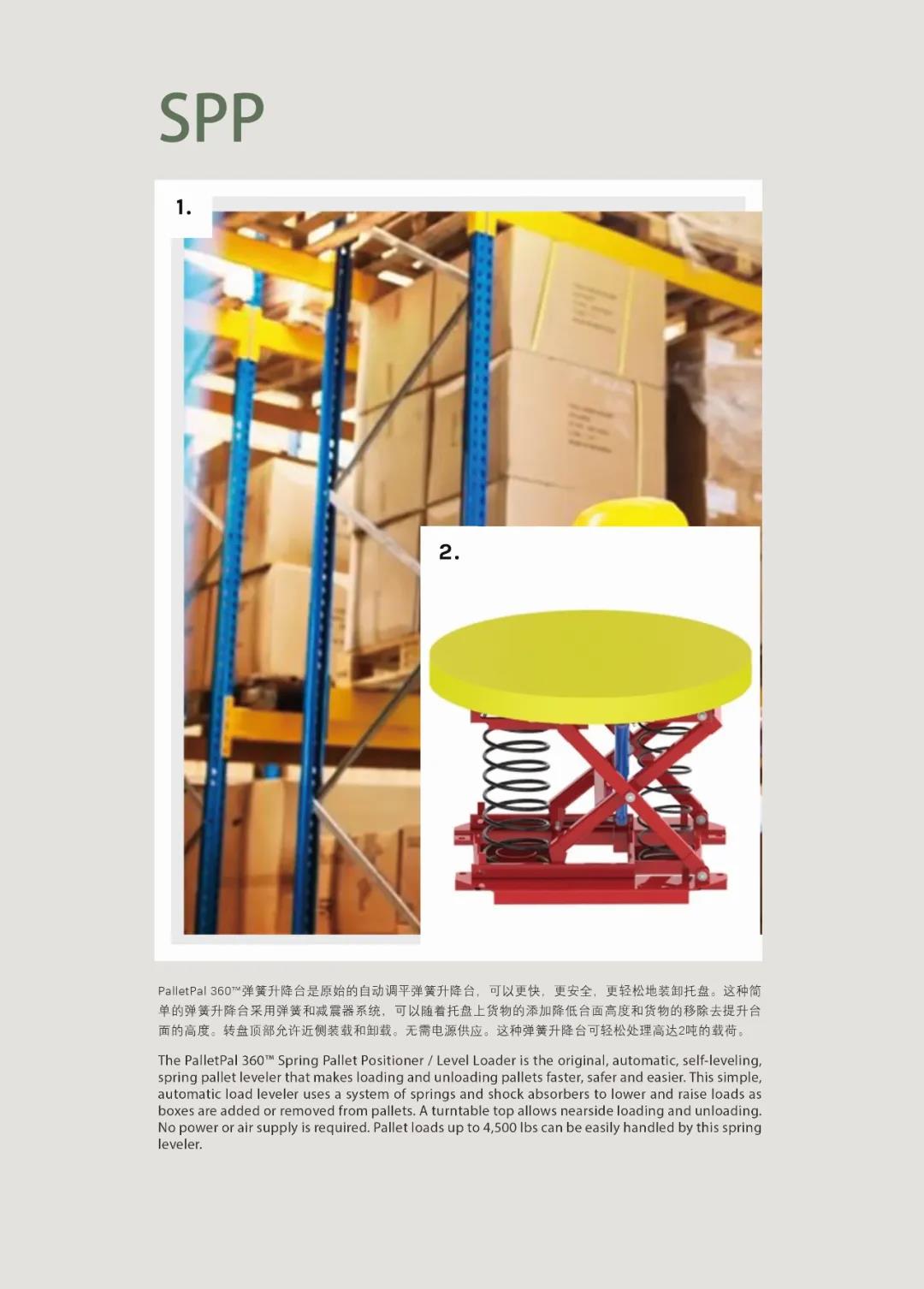

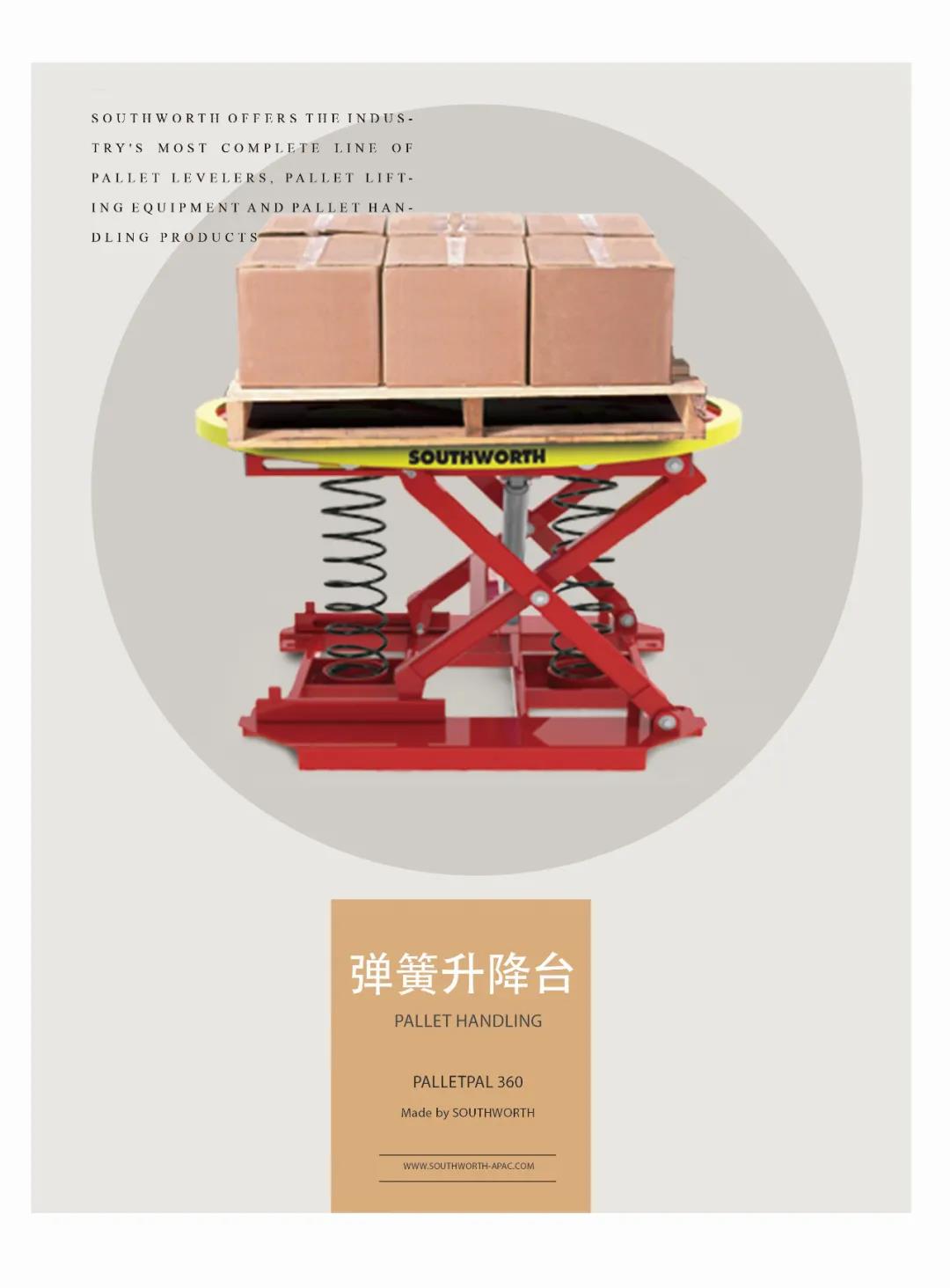

Southworth offers the industry's most complete line of pallet levelers, pallet lifting equipment and pallet handling products. The flagship is the PalletPal Spring Level Loader, the product that revolutionized manual pallet loading and unloading in North America. PalletPal Spring Level Loaders are simple devices that keep loads at an ideal height for building or breaking down pallet loads. The original PalletPal Spring Level Loader was introduced by Southworth in 1988 and has been continuously improved since then. In addition to the PalletPal Spring Leveler the line of pallet levelers and pallet handling equipment has grown to include a wide variety of products including Airbag Levelers, Operator Controlled Levelers, Pallet Truck Accessible Levelers, Pallet Lift Tables and more, all designed to make pallet handling faster, safer and easier.

.产品特征

自动调平操作无需操作员调整。

坚固的管材机架，可承受高达2吨的负载。

重型弹簧经过校准，可将托盘带到最方便的高度。

经验证的连杆机构的设计可在不均匀负载下保持水平。

减震器提供稳定的逐渐升高和降低过程，无过冲或弹跳。

用于支撑转盘旋转的轴承具有很小的摩擦阻力并可以用于近侧装卸。

酚醛树脂盖板（可选）。

用于叉车重新定位的叉槽也可延伸底座，以实现稳定的自由放置。

调平脚（可选）允许在倾斜或不平的地板上使用。

独立式，可以通过叉车轻松重新定位。

Product Features

Self-Leveling action no operatoradjustments required

Rugged tubular steel frame for loads up to4,500 lbs.

Heavy-duty springs calibrated to bringpallet to most convenient height.

Proven linkage design maintains level underuneven loading.

Dampener provides smooth, gradual raisingand lowering, without overshoot or bounce.

Low-friction bearing supported turntablefor near-side loading and unloading.

Phenolic frame cover (optional).

Fork pockets for relocation by fork truckalso extend base for free standing stability.

Leveling feet (optional) allow use onsloping or uneven floors.

Free standing, can be easily relocated byfork truck.
